6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Brand Name : FY

Model Number : FY-P38

Certification : CE

Place of Origin : China,Shanghai

MOQ : 1 set

Price : USD$ 1850/1800/1750/1700

Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability : 300 sets per month

Delivery Time : 2-7 working days

Packaging Details : wooden box

Voltage : 220V/240V/380V/415V(Optional)

Gross Weight : 300kgs

Net Weight : 275kg

Power(w) : 3KW/4KW

Dimension(l*w*h) : 950*630*700 mm

Package Dimension : 1000*680*750 mm

Warranty : 1 Year

Condition : New

After-sales service provided : Video technical support,Online support

Crimping force : 300Ton/0.3MT

Product name : 6-51mm Hydraulic Hose Crimping Machine Up To 2.5 Inch With Rack And Fast Change Mould Tool And 10 Interchangeable Dies For Versatile Crimping

Crimping range : 6-51mm/1.5 inch/2 inch

Color : Blue,blue or customize

Application : Crimp Hose

Free dies : 10 sets

System pressure : 26MPA/31.5MPA/260 bar/315 bar

Output Volume Of Pump : 2.5L/5L

HIGH LIGHT : Advanced hydraulic pipe crimping machine, Dash control hydraulic pipe crimping machine, pipe crimping machine

Contact Now

6-51mm Hydraulic Hose Crimping Machine
Professional hydraulic hose crimping machine with 2.5 inch capacity, featuring rack and fast-change mold tool with 10 interchangeable dies for versatile crimping applications.
Product Overview
The 6-51mm Hydraulic Hose Crimping Machine delivers high-performance crimping for various hydraulic applications. Engineered to handle hose sizes up to 2.5 inches, this versatile machine includes a rack and fast-change mold tool with 10 interchangeable dies for maximum efficiency. Ideal for hydraulic repair shops, automotive service centers, and oil industries, this professional-grade equipment serves markets in the USA, Europe, and Southeast Asia.
Key Features
  • Wide Crimping Range: Accommodates hose sizes from 6mm to 51mm for comprehensive hydraulic hose coverage
  • Large Hose Capacity: Crimps hoses up to 2.5 inches for demanding industrial applications
  • Fast Change Mould Tool: Quick die adjustments minimize downtime and maximize productivity
  • 10 Interchangeable Dies: Seamless transitions between different hose sizes for enhanced versatility
  • Durable Construction: High-quality materials ensure long-lasting performance in heavy-duty use
Operational Advantages
  • Increased Productivity: Fast-change tool and wide crimping range enable efficient project completion
  • Versatile Applications: Suitable for hydraulic repair shops, automotive services, and oil distribution
  • Reliable Performance: Industry-standard design ensures consistent, high-quality crimping results
  • Cost-Effective Solution: Consolidates multiple functionalities, reducing equipment investment
  • Minimal Maintenance: Robust construction requires less frequent upkeep for operational efficiency
Technical Specifications
Model FY-P51 Hose Crimping Machine
Crimping Range 6-51mm (1/4"-2")
Crimping Force 300T
System Pressure 26Mpa/31.5Mpa (Optional)
Accuracy 0.01mm
Work Efficiency 200 pcs/h
Voltage Options 220V/240V/380V/415V
Motor Power 3KW/4KW
Dimensions (L*W*H) 950*630*700 mm
Weight 275kg
Die Sets Included 10 sets
Premium Components
Advanced PLC System
Multifunctional control panel with different operation modes for precise crimping control.
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
High-Quality Die Sets
8 die sets with hardness 59-63HRC and quick change tool for efficient operation.
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Premium Motor
World-famous motor with high stability for reliable performance.
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Forged Oil Cylinder
Higher anti-wear ability compared to traditional technology for extended service life.
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Applications
The FY-P38 is a high-performance hose crimper capable of crimping various materials including:
  • High pressure stainless steel braided hydraulic oil hoses
  • Industrial flexible pipes
  • Air or water hoses
  • Cables and wires
  • Steel and iron tubes
  • Brake lines in automotive systems
  • Air suspension or springs
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

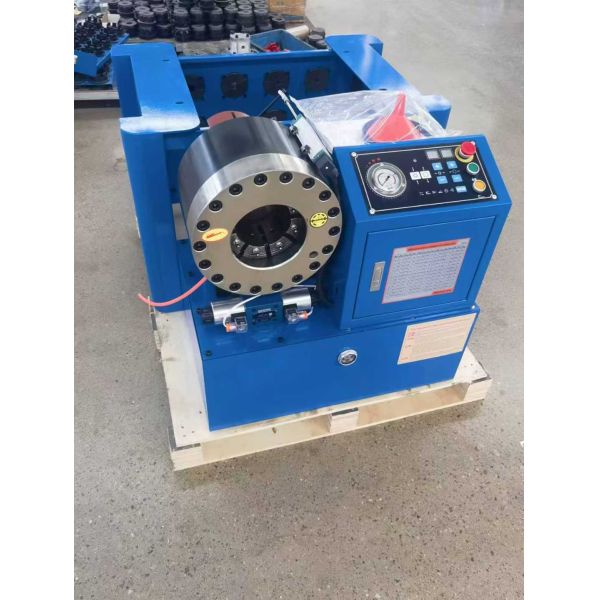

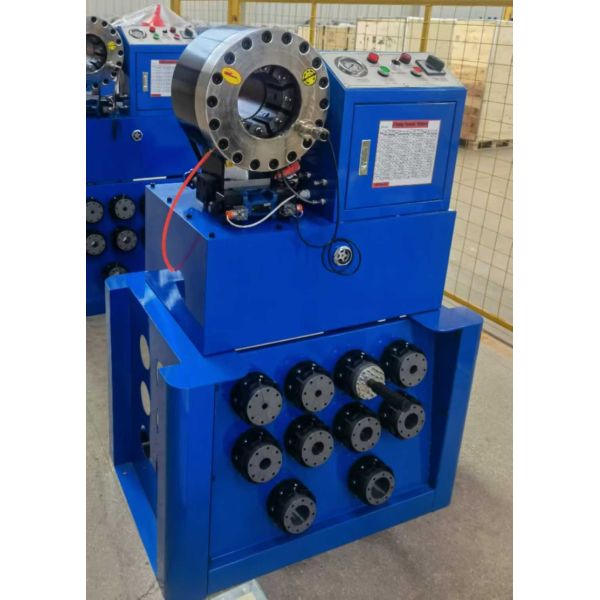

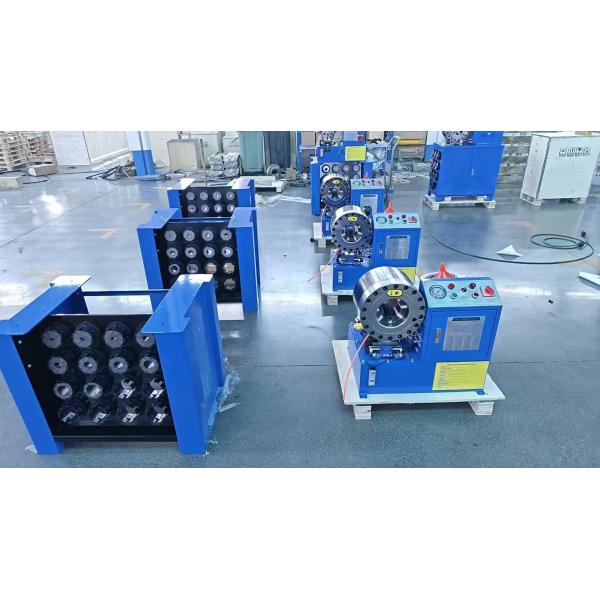

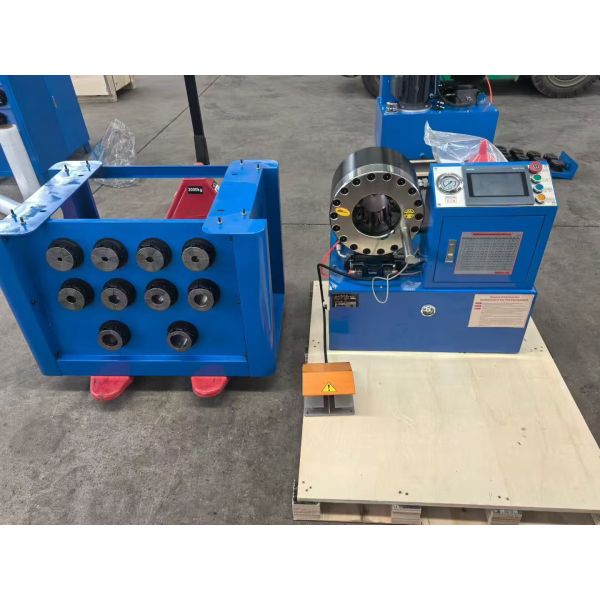

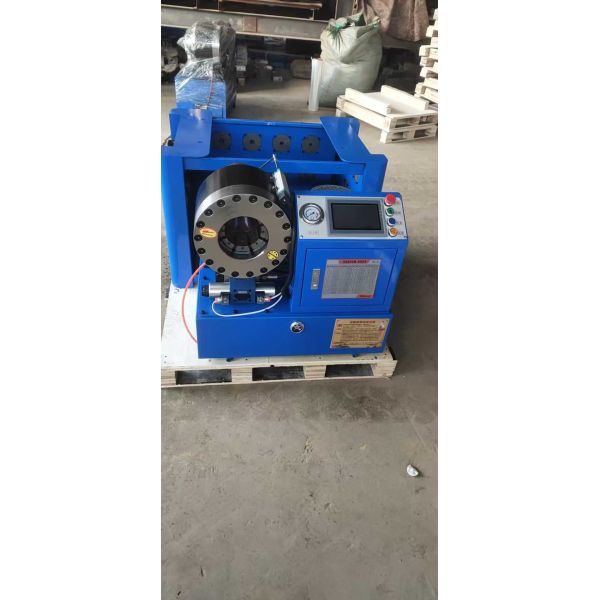

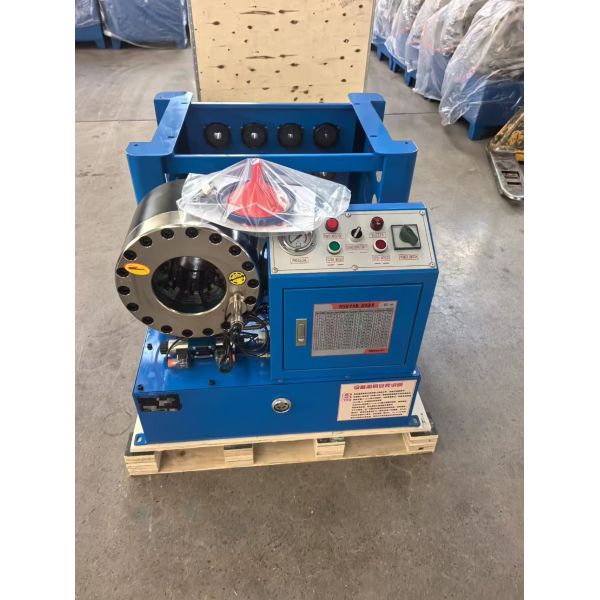

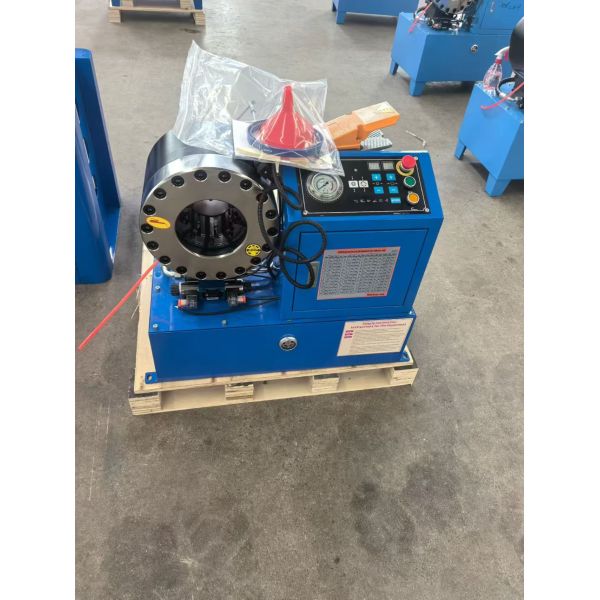

Product Images
6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping 6-51mm Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping
Product Video


Additional Information
Note:
  • Non-standard die sets available
  • Customized die sets can be provided
  • Special voltages (220V, 240V, 380V, 415V) available
